Description

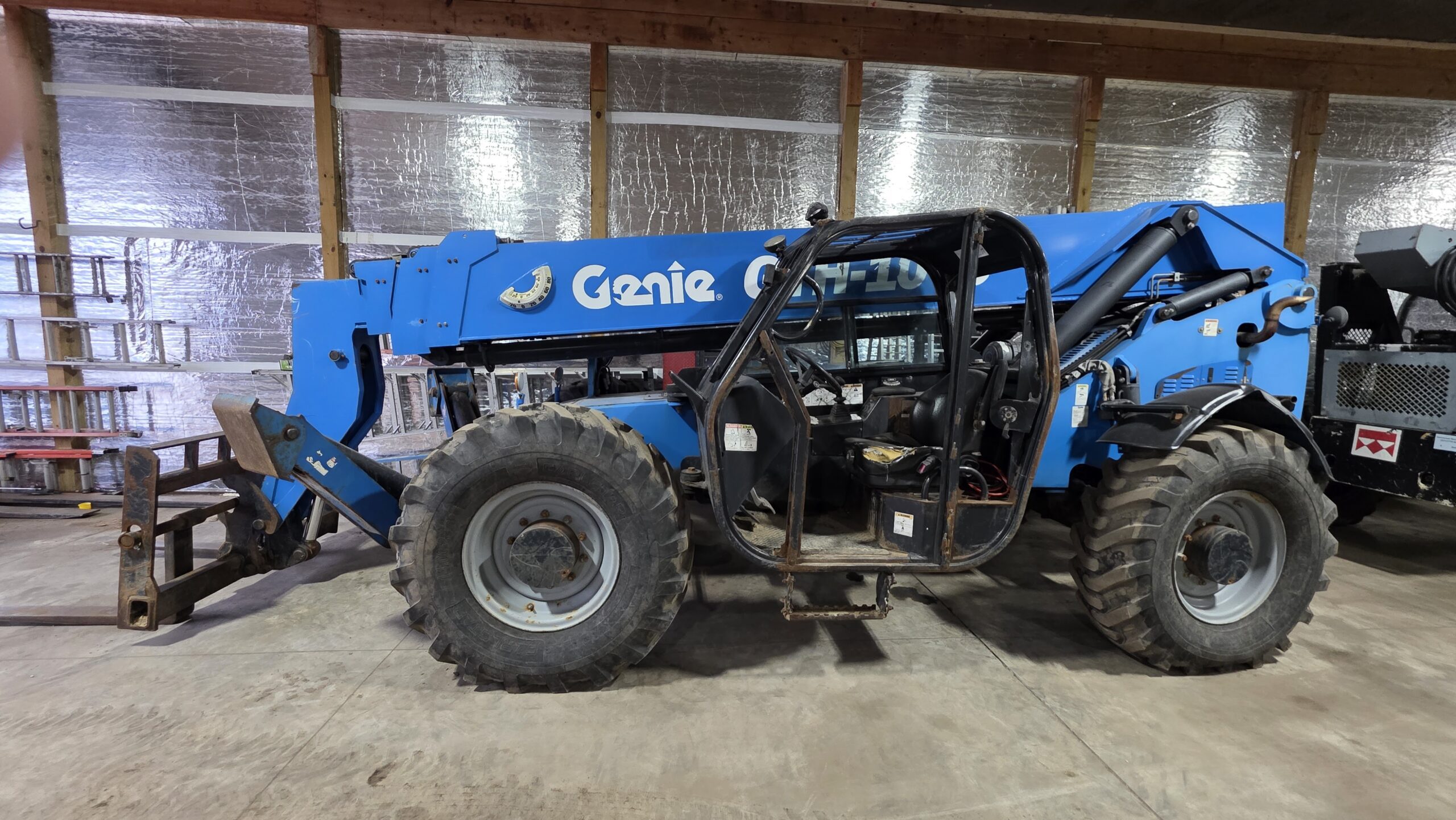

Genie GTH1056 Telescopic Forklift
Telescopic Forklift
Telescopic Forklift
Telescopic Forklift
Units

Dimensions
Dimensions
A
Length To Fork Face
22.02ft in

E
Ground Clearance
1.51ft in

B
Width Over Tires
8.5ft in

C
Overall Height
8.5ft in

D
Wheelbase
10.67ft in

Turning Radius Outside Tires
13.26ft in

Lift
F
Max Lift Height
56.83ft in

G
Max Forward Reach
42ft in

Lift Capacity At Max – Height
3999185.18lb

Max Lift Capacity
10000.17lb

Max Load At Max Height
3999.19lb

Max Load At Max Reach
3000.5lb

Lift Capacity At Max – Reach
3000491.19lb

Specifications
Engine
Power
Deutz TCD 3.6 L

Emission Tier Level
Tier 4i

Battery
1000 CCA at 0˚F (-18˚C)

Number Of Cylinders
4

Engine Make
2351

Engine Model
1104C-44TA

Gross Power
121.1hp

System Voltage
12V

Aspiration
Turbocharged

Operational
Turning Radius – Axle Outside
13.3ft in

Operating Weight
30000.6lb

Fuel Capacity
35.1gal

Hydraulic System Fluid Capacity
55.1gal

Drawbar Pull
28799lb

Tire Size
14 x 24 in, 12 ply

Transmission
Transmission Type
Powershift

Number Of Forward Gears
3

Number Of Reverse Gears
3

Max Speed – Forward
16.8mph

Hydraulic
Auxiliary Hydraulic Flow
15gal/min

Auxiliary Hydraulic Pressure
3200psi

Pump Type
Variable displacement

Pump Flow Capacity
15.1gal/min

Relief Valve Pressure
3200psi

Boom
Boom Up
13.5sec

Boom Extend
16sec

Boom Retract
15sec

Boom Down
12sec
